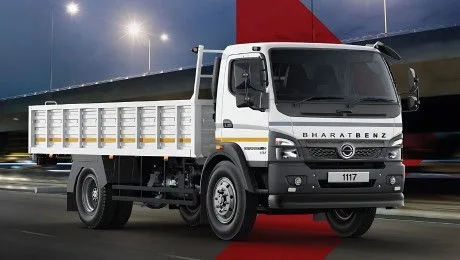

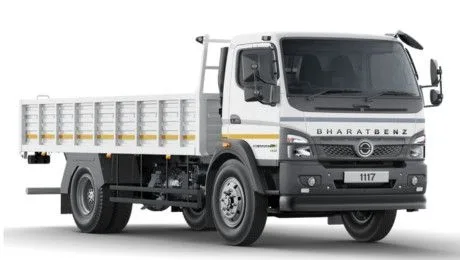

BharatBenz 1117R

World-class technology for Indian roads. Explore our range of ultra-modern trucks.

Key Specifications

Demo: Available Schedule Demo

Specifications and Features

Engine Model	4D34i
Maximum Power – (kW)	125 kW @ 2500 rpm
Maximum Torque – (Nm)	520 Nm @ 1200 – 1600 rpm
No. of Cylinders, cc	4, 3900
Emission Standard	Bharat Stage VI – OBD-2

Gear Box Model & Type	Improved G85, 6F+1R, Mechanical, Sychromesh gears
Clutch Type	Single Dry Plate, Hydraulic Control
Clutch Dia, Wear (mm)	362, 3.6
Power Take Off	Optional

Front Axle	IF 3.6
Rear Axle	DANA S 130, DANA S 130, DANA S 130
Rear Axle Ratio	4.56, 4.56, 4.56,4.56

Frame Section (D x W x T) (mm)

228 x 80 x 6, 228 x 80 x 6, 228 x 80 x 6, 228 x 80 x 6

Front Suspension

Multileaf Spring, Multileaf Spring, Multileaf Spring, Multileaf Spring

Rear Suspension

Multileaf Spring, Multileaf Spring, Multileaf Spring, Multileaf Spring

Anti-Roll Bar

Front Standard, Rear Optional

Service Brake	Pneumatic, Foot Operated, Dual Line Non – ABS
Parking Brake	Spring Actuated with Hand Brake Valve @ cab
Front Brake Size (mm) & Type	Ø 325 drum
Rear Brake Size (mm) & Type	Ø 325 drum

Cabin

Day Cabin

Steering Type

Hydraulic Power Assisted

Battery Capacity	75Ah
Voltage	24V

Pattern & Size

Radial tyres – 8.25R16 Tubeless tyres – 235/75R17.5

Gross Vehicle Weight – (kg)

11120 kgs

Wheel Base (mm):	3360	3760	4250	4800
Loading Span (mm):	4580	5185	6150	6395
Overall Length (mm):	6380	6985	7950	8250
Overall Width (mm):	2205	2205	2205	2205
Overall Height (mm) (CBC):	2420	2420	2420	2420
Front Overhang (mm):	1275	1275	1275	1275
Rear Overhang (mm):	1745	1950	2425	2120
Ground Clearance (mm):	205	205	205	205

Fuel Tank / Filling Capacity (L)

171L/160L

215L/200L

Adblue Tank / Filling Capacity (L)

43L/36L

TCD (m)

13.4 m

13.8 m

15.7 m

17.6 m

Maximum Gradeability (%)

37.60%

Maximum Geared Speed (kmph)

80 kmph

Varients

Mileage

The BharatBenz 1117R is built for superior fuel efficiency, offering up to 6.5 KMPL, making it one of the most economical trucks in its category. Its advanced BS-VI compliant engine ensures reduced emissions and enhanced mileage without sacrificing power and performance.
