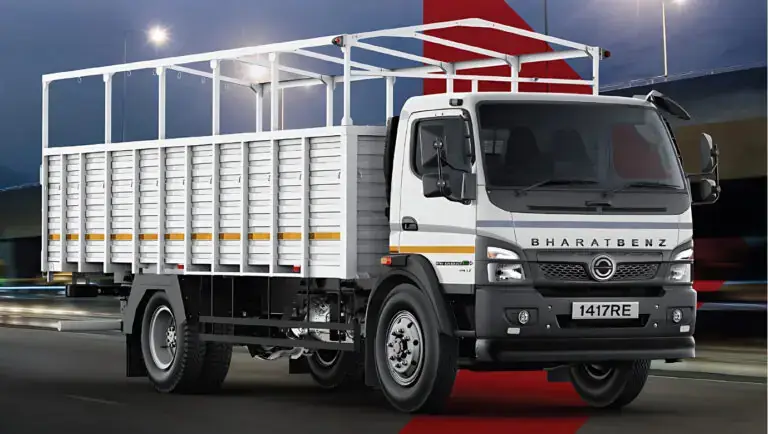

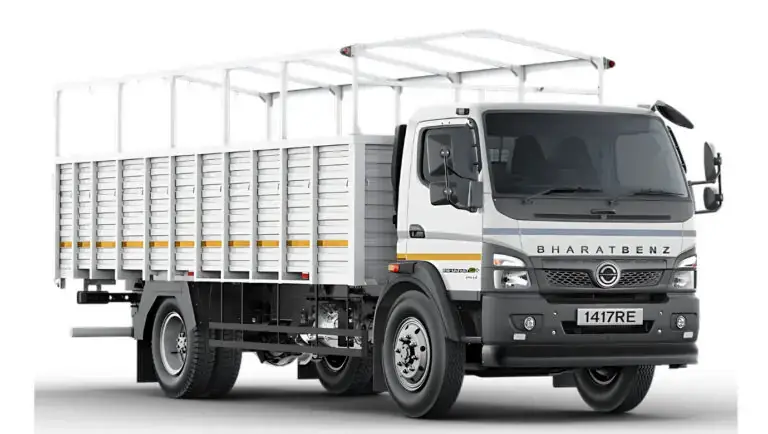

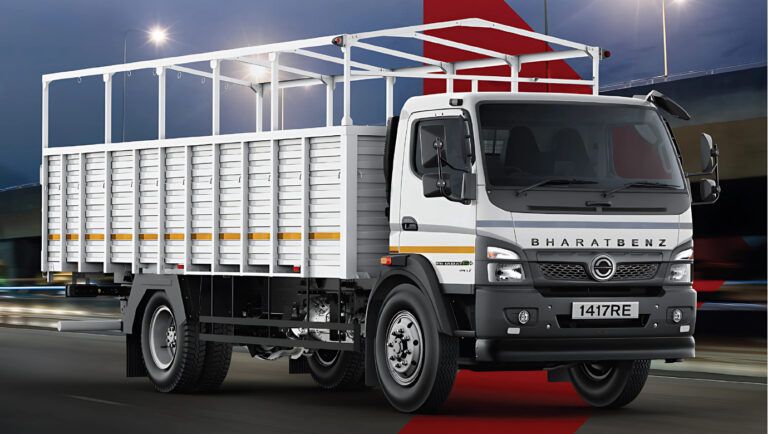

BharatBenz 1417RE

World-class technology for Indian roads. Explore our range of ultra-modern trucks.

Key Specifications

Demo: Available Schedule Demo

Specifications and Features

Gear Box Model & Type	G85 – 6F+1R, Mechanical, Synchromesh gears
Clutch Type	Single Dry Plate, Hydraulic Actuated
Clutch Dia, Wear (mm)	362, 3.6
Power Take Off	Auxiliary Fitment

Gear Box Model & Type	Improved G85, 6F+1R, Mechanical, Synchromesh Gears
Clutch Type	Single Dry Plate, Hydraulic Control
Clutch Dia, Wear (mm)	362, 3.6
Power Take Off	Auxiliary Fitment

Front Axle	IF 5.0
Rear Axle	DANA – S145
Rear Axle Ratio	4.56 (S), 6.33 (O)

Frame Section (D x W x T) (mm)	230 x 80 x 7
Front Suspension	Multileaf Spring
Rear Suspension	Multileaf Spring
Anti-Roll Bar	Standard fitment in front

Service Brake	Pneumatic, Foot operated, Dual line (with ABS)
Parking Brake	Spring Actuated with Hand Brake Valve @ Cab
Front Brake Size (mm) & Type	Ø 360 drum
Rear Brake Size (mm) & Type	Ø 360 drum

Cabin

Day Cabin

Steering Type

Hydraulic Power Assisted

Battery Capacity	75Ah/100Ah(HAP)
Voltage	24V

Pattern & Size

Tubeless tyres – 255/70R22.5

Gross Vehicle Weight – (kg)

14500 kgs

Wheel Base (mm):	3360	3760	4250	4800	5050
Loading Span (mm):	4580	5275	6230	6780	7495
Overall Length (mm):	6380	7075	8030	8580	9295
Overall Width (mm):	2240	2240	2240	2240	2240
Overall Height (mm) (CBC):	2475	2475	2475	2475	2475
Front Overhang (mm):	1275	1275	1275	1275	1275
Rear Overhang (mm):	1745	2040	2505	2505	2970
Ground Clearance (mm):	220	220	220	220	220

Fuel Tank / Filling Capacity (L)

215L/200L

For 3360 – 171L/160L

Adblue Tank / Filling Capacity (L)

43L/36L

TCD (m)

13.9m

14.8m

16.7m

18.7m

19.7m

Maximum Gradeability (%)

6.33 RAR – 36.2% ; 4.56 RAR – 25%

Maximum Geared Speed (kmph)

70 kmph

Varients

Mileage

The BharatBenz 1417RE is built for superior fuel efficiency, offering up to 6.5 KMPL, making it one of the most economical trucks in its category. Its advanced BS-VI compliant engine ensures reduced emissions and enhanced mileage without sacrificing power and performance.

On-road Price & EMI

The on-road price of the BharatBenz 1417RE varies based on location and other factors. For the best price and offers, contact us today. 📞 Get in touch with us for pricing and financing details!

Latest Offers & Updates

Unlock exclusive offers on the 1417RE! Get special discounts, financing options, and exchange benefits. Click the button below to inquire now—our team will get back to you shortly!

No data was found

Latest Videos

BharatBenz Launches 10 New Models

BharatBenz launches 10 new models on successfully completing 10 grand years in the Indian CV industry

Bytes From BharatBenz 10 Year CELEBRATION

Whoa! One month already since our grandiose BharatBenz CELEBRAT10N, yet it’s still fresh in our minds.

BharatBenz Showrooms & Service Centers

Mysore

Bengaluru

Hassan

Shimoga

Chikballapur

Mangalore

Chitradurga

Attibele

Kalyan Nagar

Narasapura

Mysore

Bengaluru

Hassan

Shimoga

Chikballapur

Mangalore

Chitradurga

Attibele

Narasapura

Yeshwantpur

Applications of 1417RE

Best for construction material transport, consumer goods logistics, and intercity freight movement. A preferred choice for industries looking for a balance of payload capacity, mileage, and durability in day-to-day logistics and supply chain operations.
