| Engine Model | 4D34i |
| Maximum Power – (kW) | 125 kW @ 2500 rpm |
| Maximum Torque – (Nm) | 520 Nm @ 1200 – 1600 rpm |
| No. of Cylinders, cc | 4, 3900 |
| Emission Standard | Bharat Stage VI – OBD-2 |
| Gear Box Model & Type | Improved G85, 6F+1R, Mechanical, Synchromesh Gears |
| Clutch Type | Single Dry Plate, Hydraulic Control |
| Clutch Dia, Wear (mm) | 362, 3.6 |
| Power Take Off | Auxiliary Fitment |
| Front Axle | IF 7.0 |
| Rear Axle | MS 145 |
| Rear Axle Ratio | 5.57 (S) 6.17 (O) |
| Frame Section (D x W x T) (mm) | 274 x 70 x 7 |
| Front Suspension | Multileaf Spring |
| Rear Suspension | Multileaf Spring |
| Anti-Roll Bar | Optional on both axles |
| Service Brake | Pneumatic, Foot Operated, Dual Line with ABS |
| Parking Brake | Spring Actuated with Hand Brake Valve @ Cab |
| Front Brake Size (mm) & Type | Ø 410 drum |
| Rear Brake Size (mm) & Type | Ø 410 drum |
| Cabin | Day Cabin |
| Steering Type | Hydraulic Power Assisted |
| Battery Capacity | 75Ah/100Ah(HAP) |
| Voltage | 24V |
| Pattern & Size | Radial tyres – 295/90R20 Tubeless tyres – 295/80R22.5 |
| Gross Vehicle Weight – (kg) | 18500 kgs |
| Wheel Base (mm): | 5100 | 5900 | 5900 | 6700 |
| Loading Span (mm): | 6185 | 6985 | 7400 | 9580 |
| Overall Length (mm): | 8600 | 9400 | 9815 | 11995 |
| Overall Width (mm): | 2457 | 2457 | 2457 | 2457 |
| Overall Height (mm) (CBC): | 2600 | 2600 | 2600 | 2600 |
| Front Overhang (mm): | 1335 | 1335 | 1335 | 1335 |
| Rear Overhang (mm): | 2165 | 2165 | 2580 | 3960 |
| Ground Clearance (mm): | 275 | 275 | 275 | 275 |
| Fuel Tank / Filling Capacity (L) | 215L/200L | 215L/200L | 215L/200L | 760L/710L (Dual Tank) |
| Adblue Tank / Filling Capacity (L) | 43L/36L | 43L/36L | 43L/36L | 43L/36L |
| TCD (m) | 17.3 m | 19.3 m | 19.3 m | 22.6 m |
| Maximum Gradeability (%) | 5.57 RAR – 21.2% | 6.17 RAR – 23.6% |
| Maximum Geared Speed (kmph) | 80 kmph & 60 kmph for tankers |

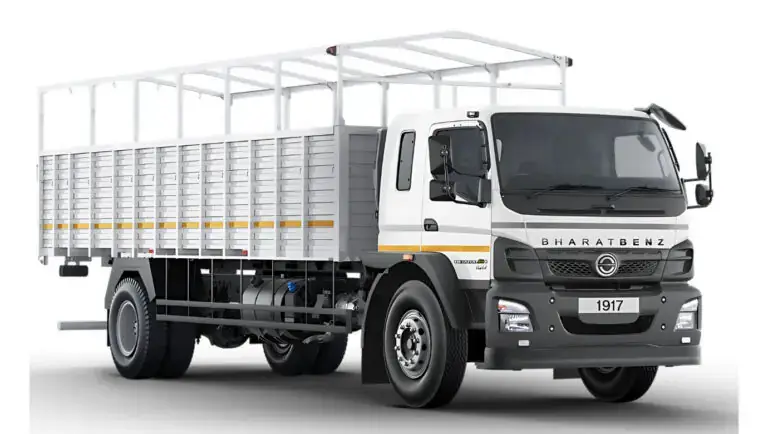

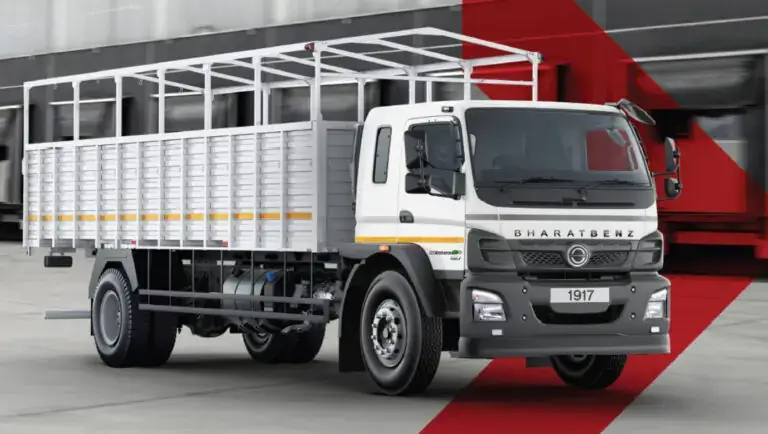

The BharatBenz 1917R is built for superior fuel efficiency, offering up to 6.5 KMPL, making it one of the most economical trucks in its category. Its advanced BS-VI compliant engine ensures reduced emissions and enhanced mileage without sacrificing power and performance.
The on-road price of the BharatBenz 1917R varies based on location and other factors. For the best price and offers, contact us today.
📞 Get in touch with us for pricing and financing details!
Unlock exclusive offers on the 1917R! Get special discounts, financing options, and exchange benefits. Click the button below to inquire now—our team will get back to you shortly!
Features like Driver Attention Monitoring, air-suspended seats, and advanced braking systems.
Tested across Indian terrains for superior durability and performance.
