| Engine Model | OM 926 |
| Maximum Power – (kW) | 210 kW @ 2200 rpm |
| Maximum Torque – (Nm) | 1100Nm @ 1200 -1600 rpm |
| No. of Cylinders, cc | 6, 7200 |
| Emission Standard | Bharat Stage VI – OBD-2 |
| Gear Box Model & Type | G 131, 9F+1R, Mechanical, Synchromesh Gears |
| Clutch Type | Single Dry Plate, Hydraulic Control |
| Clutch Dia, Wear (mm) | 430, 3.5 |
| Power Take Off | Standard |
| Front Axle | IF 7.0 |
| Rear Axle | MT 610 Hub Reduction |
| Rear Axle Ratio | 5.39 |
| Frame Section (D x W x T) (mm) | 288 x 70 x 9 |
| Front Suspension | Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers |
| Rear Suspension | Bogie Suspension |
| Anti-Roll Bar | Front: Standard / Rear RA2: Standard |
| Service Brake | Pneumatic Foot Operated, Dual Line with ABS |
| Parking Brake | Pneumatically Operated Hand Control Valve |
| Front Brake Size (mm) & Type | Ø 410 drum |
| Rear Brake Size (mm) & Type | Ø 410 drum |
| Cabin | Day Cabin |
| Steering Type | Hydraulic Power Assisted |
| Battery Capacity | 120Ah |
| Voltage | 24V |
| Pattern & Size | Mining Tyre (11×20) |
| Gross Vehicle Weight – (kg) | 27600 kgs |
| Wheel Base (mm): | 4275 | ||
| Loading Span (ft) / Loadbody cpc (Cu.m): | 16 Cu.m Scoop/ 16 Cu.m Box | ||
| Overall Length (mm): | 7185 | ||
| Overall Width (mm): | 2490 | ||
| Overall Height (mm) (CBC): | 2995 | ||
| Front Overhang (mm): | 1485 | ||
| Rear Overhang (mm): | 750 | ||
| Ground Clearance (mm): | 331 |
| Filling Capacity (L) | 215L/ 200L |
| Adblue Tank / Filling Capacity (L) | 43L/ 36L |
| TCD (m) | 16.2 m |
| Maximum Gradeability (%) | 60.80% |
| Maximum Geared Speed (kmph) | 60 kmph |

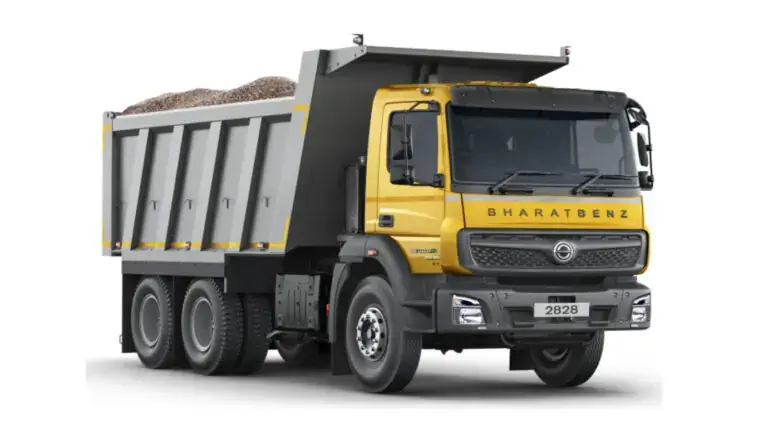

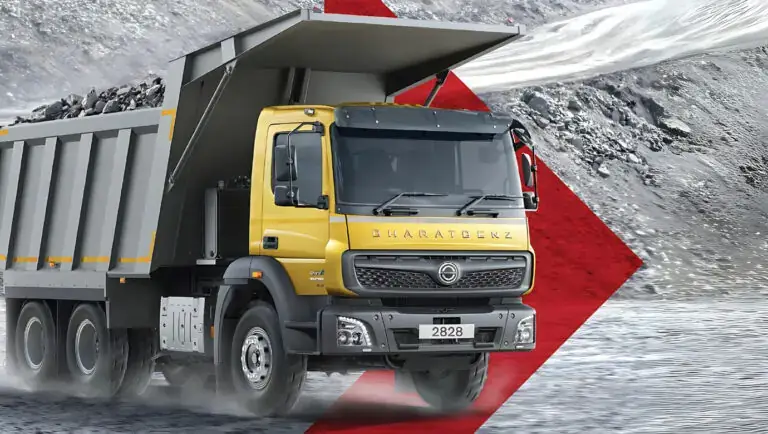

The BharatBenz 2828CH is built for superior fuel efficiency, offering up to 6.5 KMPL, making it one of the most economical trucks in its category. Its advanced BS-VI compliant engine ensures reduced emissions and enhanced mileage without sacrificing power and performance.
The on-road price of the BharatBenz 2828CH varies based on location and other factors. For the best price and offers, contact us today.
📞 Get in touch with us for pricing and financing details!
Unlock exclusive offers on the 2828CH! Get special discounts, financing options, and exchange benefits. Click the button below to inquire now—our team will get back to you shortly!
Features like Driver Attention Monitoring, air-suspended seats, and advanced braking systems.
Tested across Indian terrains for superior durability and performance.
