| Engine Model | OM926 BSVI OBD-II |
| Maximum Power – (kW) | 316hp (236kW) @ 2200 rpm |
| Maximum Torque – (Nm) | 1250 Nm @ 1200 – 1600 rpm |
| No. of Cylinders, cc | 6 , 7200 |
| Gear Box Model & Type | TORQSHIFT, 12F + 4R |
| Clutch Type | Single Dry Plate – Organic |
| Clutch Dia, Wear (mm) | 430 |
| Power Take Off | Standard |
| Front Axle | IF 7.5 (Forged – Reverse Elliot) |
| Rear Axle | MT36 (Hub reduction) |
| Rear Axle Ratio | 6.18 |
| Frame Section (D x W x T) (mm) | 288 x 70 x 9 |
| Front Suspension | 4 Leaf Parabolic Leaf Spring |
| Rear Suspension | Tandem, Multi Leaf Bogie |
| Anti-Roll Bar | Front & Rear – Standard |
| Service Brake | Pneumatic – Dual Line with ABS & Hill Hold Assist |
| Front Brake Size (mm) & Type | Ø 410 drum |
| Rear Brake Size (mm) & Type | Ø 410 drum |
| Auxillary Brake | Engine Brake & Exhaust Brake |
| Cabin | Day Cabin |
| Steering Type | Hydraulic Power Assisted (Tilt and Telescopic) |
| Battery Capacity | 120Ah |
| Voltage | 24V |
| Pattern & Size | 12×20 Mine Lug with 8.5×20 Wheel Rim |
| Gross Vehicle Weight – (kg) | 35000 kg |
| Wheel Base (mm): | 5175 | ||
| Loading Span (ft) / Loadbody cpc (Cu.m): | 19.5 Scoop | 27 Box | ||
| Overall Length (mm): | 8085 | ||
| Overall Width (mm): | 2490 | ||
| Overall Height (mm) (CBC): | 2960 | ||
| Front Overhang (mm): | 1485 | ||
| Rear Overhang (mm): | 750 | ||
| Ground Clearance (mm): | 359 |
| Filling Capacity (L) | 310 |
| Adblue Tank / Filling Capacity (L) | 36 |
| TCD (m) | 19.5 |
| Maximum Gradeability (%) | 59 |
| Maximum Geared Speed (kmph) | 60 |
The BharatBenz 1617R is built for superior fuel efficiency, offering up to 7 KMPL, making it one of the most economical trucks in its category. Its advanced BS-VI compliant engine ensures reduced emissions and enhanced mileage without sacrificing power and performance.
The on-road price of the BharatBenz 1617R varies based on location and other factors. For the best price and offers, contact us today.
📞 Get in touch with us for pricing and financing details!

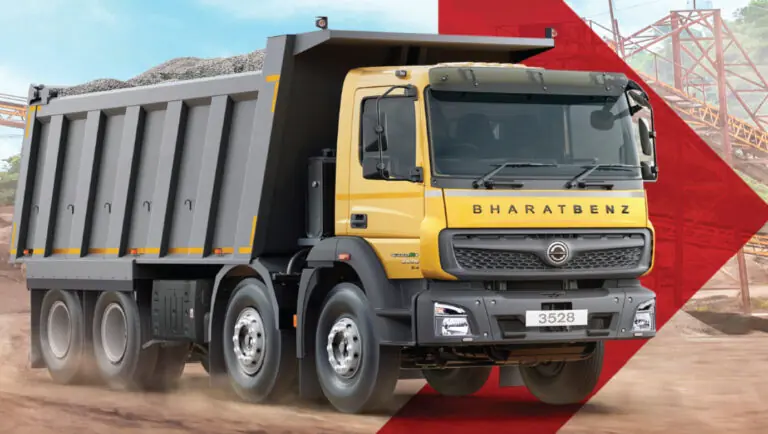

Unlock exclusive offers on the 3528C! Get special discounts, financing options, and exchange benefits. Click the button below to inquire now—our team will get back to you shortly!
Features like Driver Attention Monitoring, air-suspended seats, and advanced braking systems.
Tested across Indian terrains for superior durability and performance.
