| Engine Model | 6D26 BSVI OBD-II |
| Maximum Power (kW) | 306 hp (228kW) @ 2300 rpm |
| Maximum Torque (Nm) | 1200 Nm @ 1200 – 1500 rpm |
| No. of Cylinders, cc | 6, 6700 |
| Gear Box Model & Type | G131, 9F + 1R & Manual – Synchromesh |
| Clutch Type | Single dry plate – Organic |
| Clutch Dia(mm) | 395 |
| Power Take Off | Optional |
| Front Axle | Twin steer – IF 7.0 (Forged – Reverse Elliot) |
| Rear Axle | RS440 drive axle (Single reduction fully floating) |
| Rear Axle Ratio | 4.3 |
| Diff. lock status | Yes |
| Frame Section (D x W x T) (mm) | 284 x 70 x 7 |
| Front Suspension | Parabolic leaf spring |
| Rear Suspension | Balancer type |
| Anti-Roll Bar | F&R – Standard fitment |
| Service Brake | Pneumatic – Dual line drum brakes with ABS |
| Front Brake Size (mm) | 410/180 |
| Rear Brake Size (mm) | 410/180 |
| Air reservoir capacity (L) | 135 |
| Auxillary Brake | Powerful I-brakes |
| Cabin | Sleeper |
| Steering Type | Tilt & telescopic 4 spoke steering wheels with hydraulic power assistance |
| Battery Capacity | 120Ah |
| Voltage | 12V x 2 |
| Pattern & Size | 295/90R20; 295/80R22.5 (optional) |
| Gross Vehicle Weight – (kg) | 42000 |
| Wheel Base (mm): | 6575 |
| Loading Span (ft/mm) | 24.1/7335 |
| Overall Length (mm): | 9920 |
| Overall Width (mm): | 2490 |
| Overall Height (mm) (CBC): | 2940 |
| Front Overhang (mm): | 1485 |
| Rear Overhang (mm): | 1185 |
| Ground Clearance (mm): | 220 |
| Fuel Tank / Filling Capacity (L) | 380 / 355 |
| Adblue Tank / Filling Capacity (L) | 60/51 |
| TCD (m) | 24 | ||||
| Maximum Gradeability (%) | 30.1 | ||||
| Maximum Geared Speed (kmph) | 80 | ||||

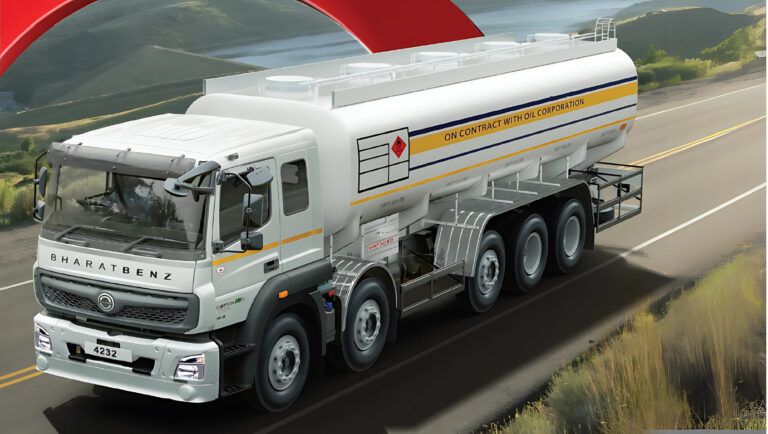

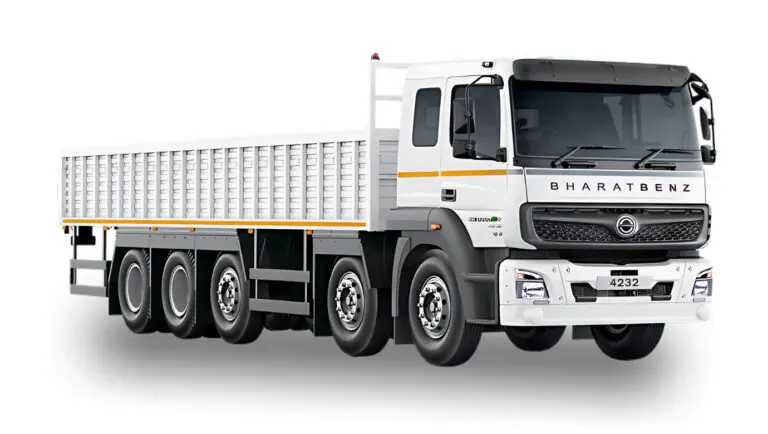

The BharatBenz 4232R is built for superior fuel efficiency, offering up to 6.5 KMPL, making it one of the most economical trucks in its category. Its advanced BS-VI compliant engine ensures reduced emissions and enhanced mileage without sacrificing power and performance.
The on-road price of the BharatBenz 4232R varies based on location and other factors. For the best price and offers, contact us today.
📞 Get in touch with us for pricing and financing details!
Unlock exclusive offers on the 4232R! Get special discounts, financing options, and exchange benefits. Click the button below to inquire now—our team will get back to you shortly!
Features like Driver Attention Monitoring, air-suspended seats, and advanced braking systems.
Tested across Indian terrains for superior durability and performance.
New Truck, Bus, Demo, Offers, Service, Financing, or Exchange, we’re here to help!
