| Engine Model | OM 926 |
| Maximum Power (kW) | 236 kW @ 2200 rpm |
| Maximum Torque (Nm) | 1250 Nm @ 1200 – 1600 rpm |
| No. of Cylinders, cc | 6, 7200 |
| Emission Standard | Bharat Stage VI – OBD-2 |
| Gear Box Model & Type | G 131, 9F+1R, Mechanical, Synchromesh Gears |
| Clutch Type | Single Dry Plate, Hydraulic Control |
| Clutch Dia, Wear (mm) | 430, 4.5 mm |
| Power Take Off | Gearbox PTO Spline (Standard fitment) |
| Front Axle | IF 7.0 |
| Rear Axle | MT36 610 (Hub Reduction) |
| Rear Axle Ratio | 4.55 |
| Frame Section (D x W x T) (mm) | 288 x 70 x 9 |
| Front Suspension | Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers |
| Rear Suspension | Semi-Elliptical With Auxiliary Springs |
| Anti-Roll Bar | Front: Standard Rear: Standard |
| Service Brake | Pneumatic, Foot Operated, Dual Line with ABS |
| Parking Brake | Pneumatically Operated Hand Control Valve |
| Front Brake Size (mm) & Type | Ø 410 drum |
| Rear Brake Size (mm) & Type | Ø 410 drum |
| Cabin | Sleeper Cabin |
| Steering Type | Hydraulic Power Assisted |
| Battery Capacity | 120Ah |
| Voltage | 24V |
| Pattern & Size | Radial Tyres – 295/90R20 Tubeless Tyres – 295/80R22.5 |
| Gross Vehicle Weight – (kg) | 50000 kgs with Suitable Three Axle Trailer – One Individual Axle & One Tandem Axle With Mechanical Suspension On All Three Axles |
| Wheel Base (mm): | 3600 |
| Overall Length (mm): | 6065 |
| Overall Width (mm): | 2490 |
| Overall Height (mm) (CBC): | 2975 |
| Front Overhang (mm): | 1485 |
| Rear Overhang (mm): | 980 |
| Ground Clearance (mm): | 304 |
| Fuel Tank / Filling Capacity (L) | 455L/ 430L |
| Adblue Tank / Filling Capacity (L) | 60L/ 51L |
| TCD (m) | 13.1 m | ||||
| Maximum Gradeability (%) | 31.40% | ||||
| Maximum Geared Speed (kmph) | 80 kmph | ||||

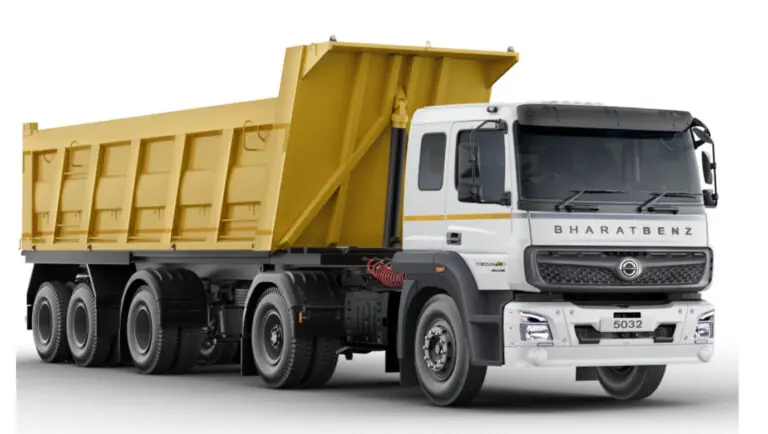

The BharatBenz 5032T is built for superior fuel efficiency, offering up to 6.5 KMPL, making it one of the most economical trucks in its category. Its advanced BS-VI compliant engine ensures reduced emissions and enhanced mileage without sacrificing power and performance.
The on-road price of the BharatBenz 5032T varies based on location and other factors. For the best price and offers, contact us today.
📞 Get in touch with us for pricing and financing details!
Unlock exclusive offers on the 5032T! Get special discounts, financing options, and exchange benefits. Click the button below to inquire now—our team will get back to you shortly!
Features like Driver Attention Monitoring, air-suspended seats, and advanced braking systems.
Tested across Indian terrains for superior durability and performance.
